QIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK Plug
  • Out-of-Stock

QIDI TECH X-Max 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, 325x325x315mm

  • Utilizes CoreXY construction and Klipper firmware to deliver print speeds up to 600mm/s and ultra-high accuracy.
  • All-metal Frame and Hardened Steel Linear Optical Axis
  • Efficient temperature-controlled heating chamber and drying box support printing of a wide range of materials and ensure no layer separation during printing.
  • Auto Leveling and Flexible HF Board Design
  • It supports a wide range of third-party slicing software.
£629.00
Quantity
favorite_border cached Add to Wishlist
Out-of-Stock

Payment & Security
  UK Local Warehouse

Fast and reliable delivery
  Ship Within 24 hours

Seamless Shopping
  Free Shipping

No extra freight fees

QIDI TECH X-Max 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, 325x325x315mm



Desktop High-Speed FDM 3D Printer

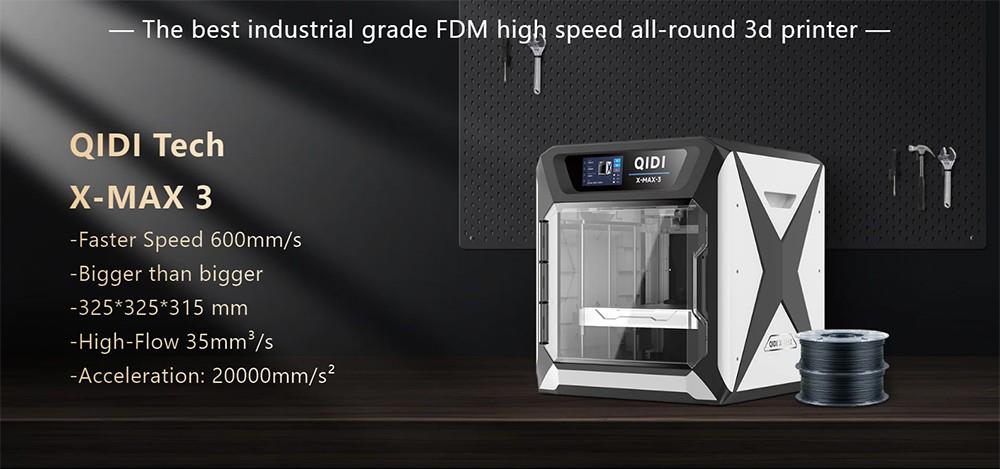

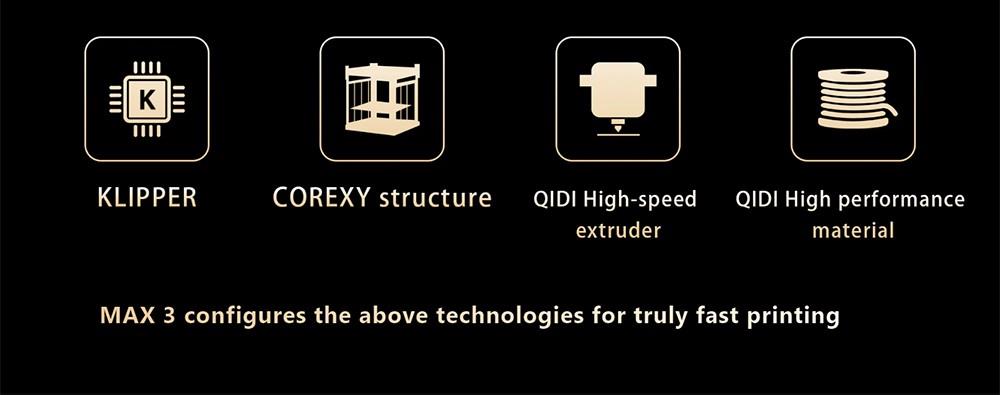

QIDI Tech X-Max 3 3D printer can offer a super high printing speed of 600mm/s, 20000mm/s² printing acceleration, and 35mm³/s extruder flow, configuring Klipper firmware, high-speed extruder, and CoreXY structure, it is the best industrial grade FDM high-speed FDM printer.

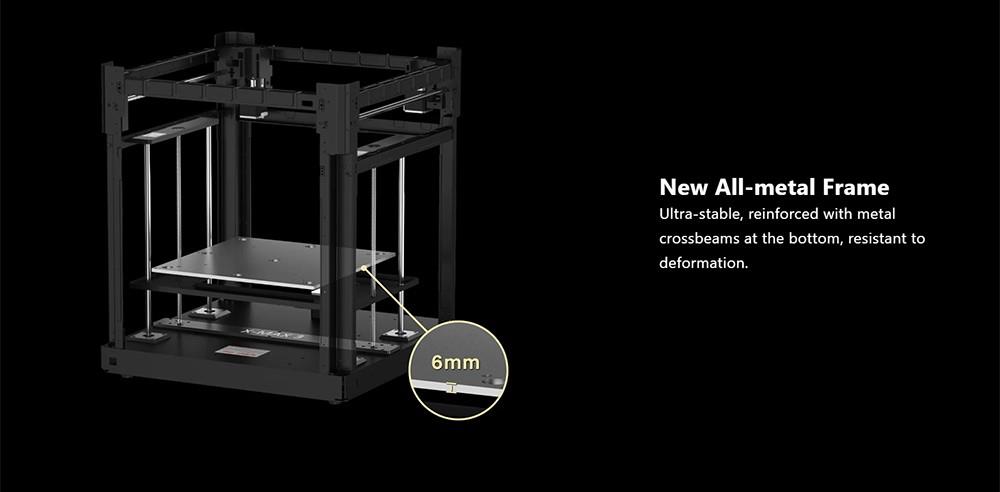

New All-metal Frame

The all-metal frame is ultra-stable, reinforced with metal crossbeams at the bottom, and resistant to deformation.

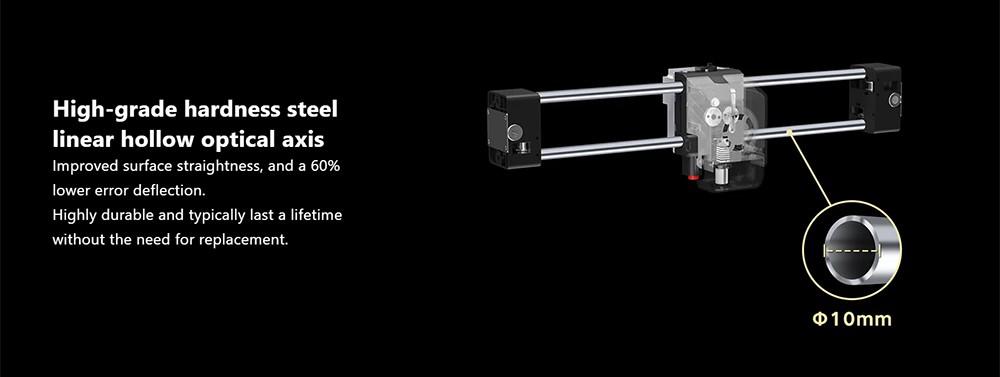

High-grade Hardness Steel Linear Hollow Optical Axis

Improved surface straightness, and a 60% lower error deflection. Highly durable and has no need for frequent maintenance.

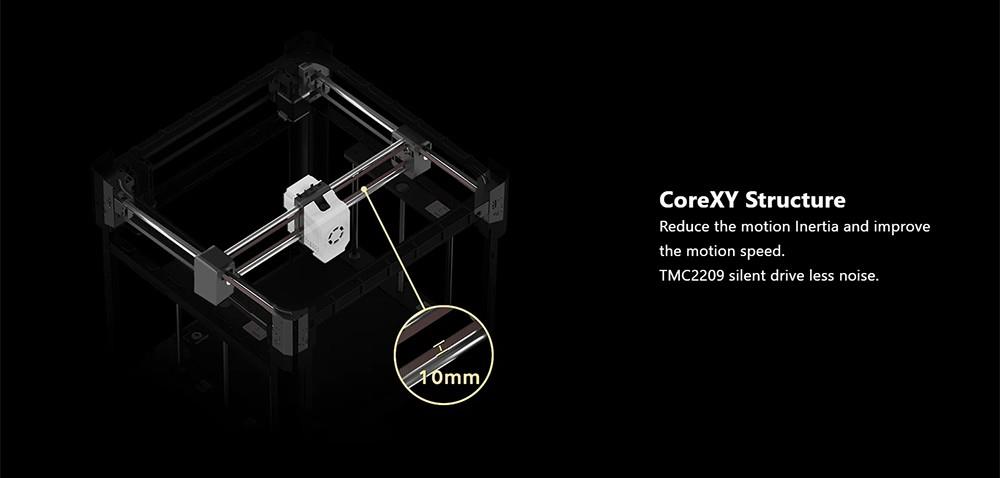

CoreXY Structure

With TMC2209 silent drive and CoreXY structure, this 3D printer can reduce motion Inertia and improve the motion speed, offering a low-noise printing experience.

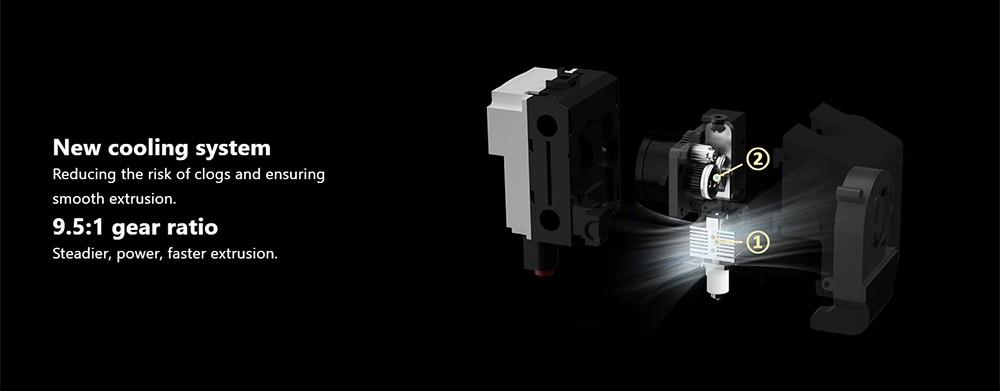

High-Speed Extruder with Cooling System

The extruder with a 9.5:1 transmission ratio is steadier, stronger, and faster. The new cooling system can reduce the risk of clogs and ensure smooth extrusion.

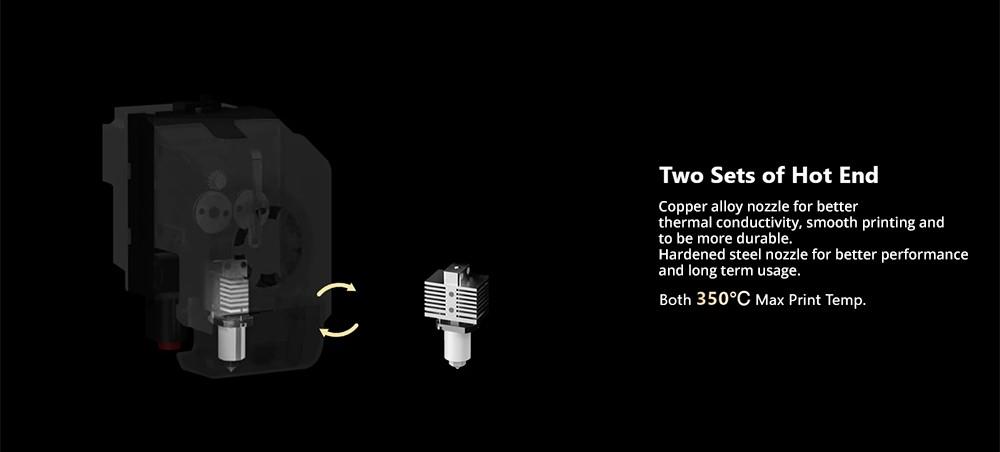

Two Sets of Hot End

Copper alloy nozzle for better thermal conductivity, smooth printing and to be more durable. Hardened steel nozzle for abrasive materials, and long-term usage. While both have a max print temp of 350 Celsius.

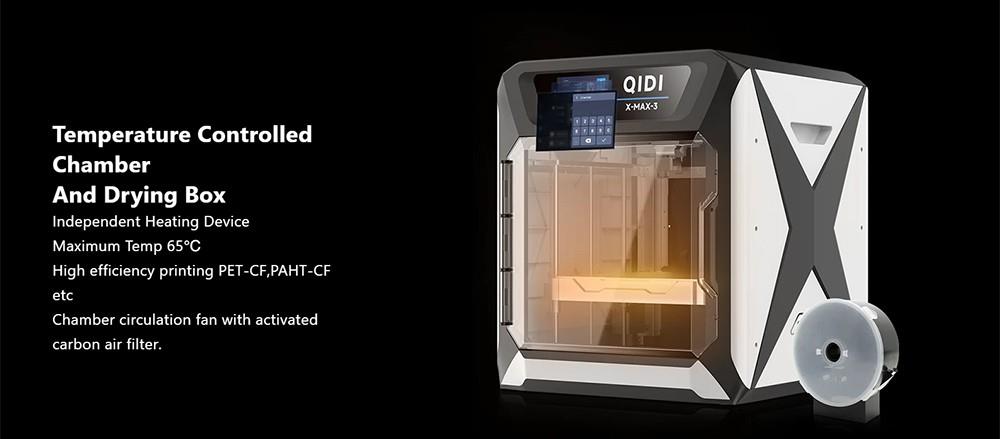

Temperature Controlled Chamber and Drying Box

With an independent heating device that has a maximum temp of 65 Celsius, QIDI X-Max 3 3D printer can high-efficiency print PET-CF, PAHT-CF, etc. It also has a chamber circulation fan with an activated carbon air filter.

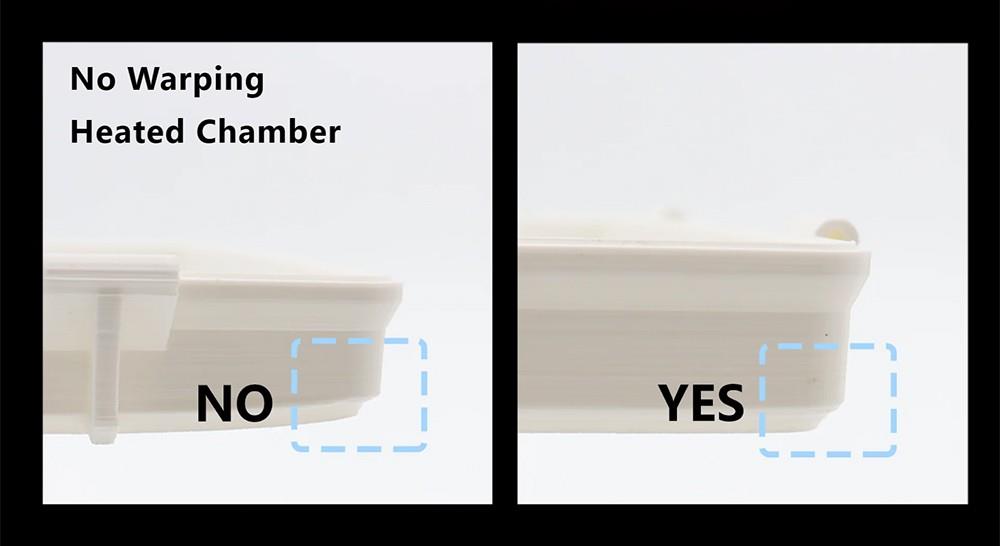

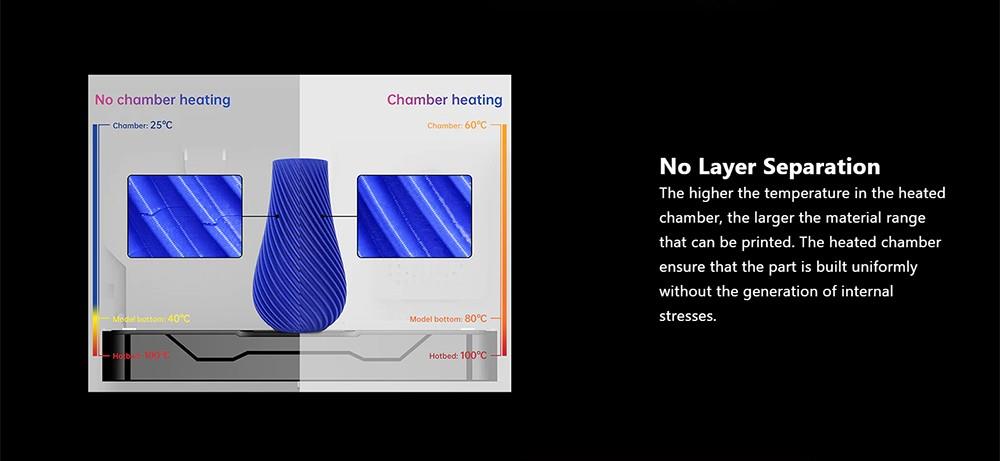

No Layer Separation

The higher the temperature in the heated chamber, the larger the material range that can be printed. The heated chamber ensures that the part is built uniformly without the generation of internal stresses.

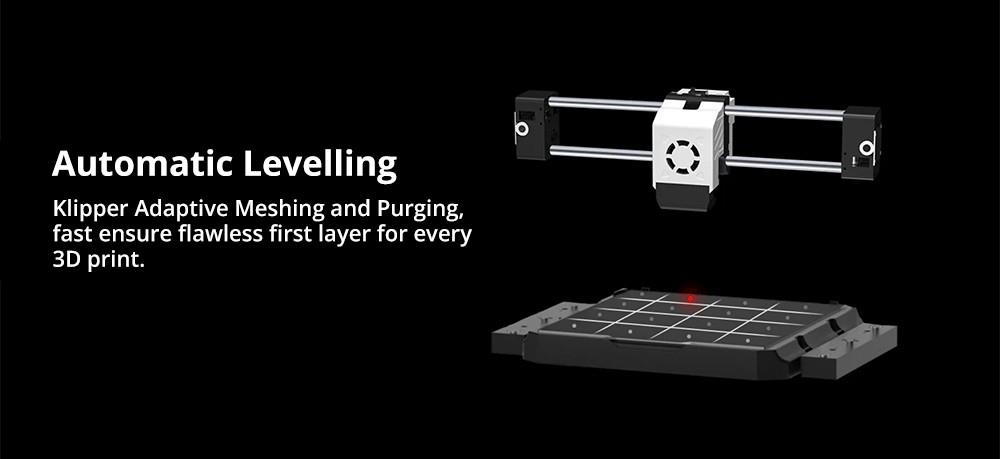

Automatic Levelling

Klipper adaptive meshing and purging, fast ensure flawless first layer for every 3D print.

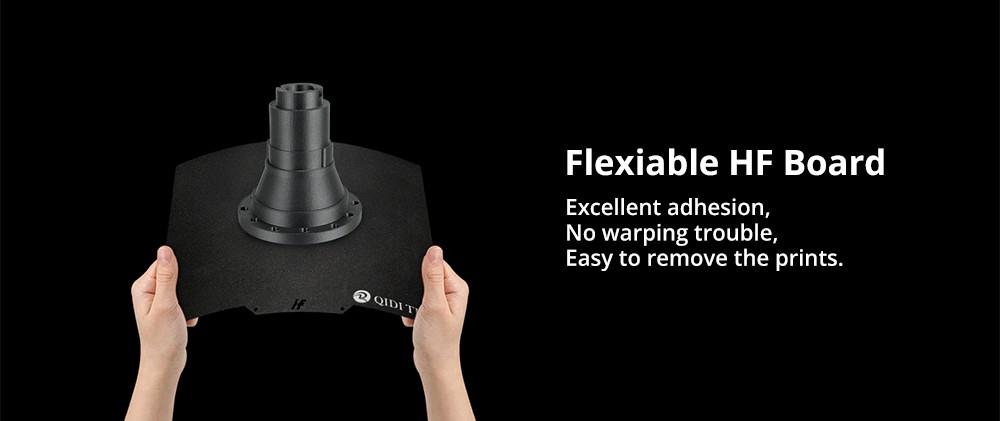

Flexible HF Board

The double-sided flexible magnetic HF plate has excellent adhesion, no warping trouble, and is easy to remove the prints.

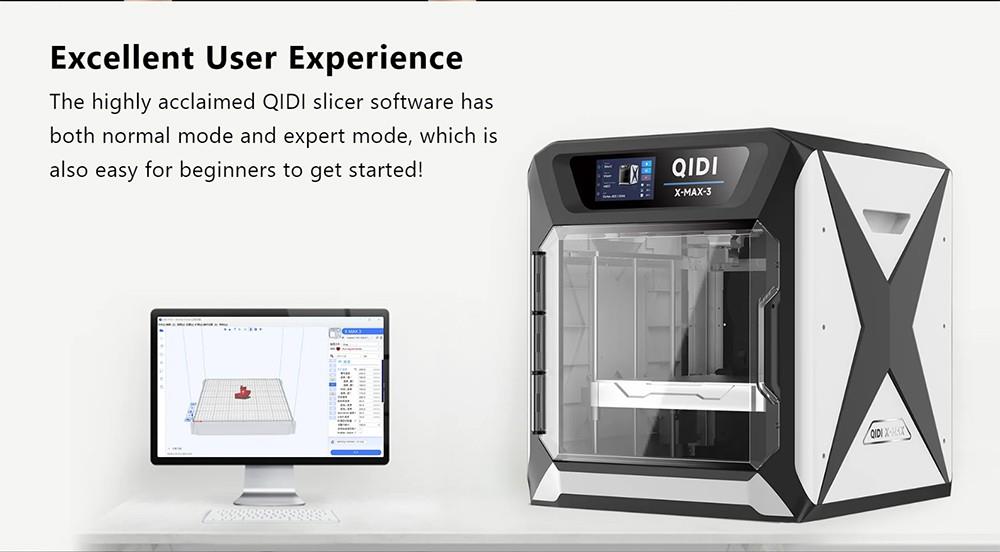

Excellent User Experience

The highly acclaimed QIDI slicer software has both normal mode and expert mode, which is also easy for beginners to get started. It also supports other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.

QIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK PlugQIDI TECH X-Max 3 3D Printer Auto Levelling 600mm/s Printing Speed Flexible HF Board 325x325x315mm - UK Plug

Specification

General

Brand: QIDI

Type: 3D Printer

Model: X-Max 3

Color: Black
Specification

Technology: FDM

Build Volume: 325*325*315mm

Printing Speed: ≤600mm/s

Extruder Flow: 35mm³/s

Extruder Temp: ≤350°C

Hotend (Included): Copper alloy nozzle hotend for Common materials; Hardened steel nozzle hotend for Abrasive materials

Auxiliary Part Cooling Fan: Yes

Chamber Temperature Control: 65 Celsius Independent Chamber Heating

Chamber Circulation Fan with Activated Carbon Air Filter: Yes

Screen: 5.0 inch, 800*480 touchscreen

Seal Print: Dryer Box DesiccantConnection Options: 150M 2.4G WiFi; USB Flash Drive/Ethernet Cable

Rated Power: 900W

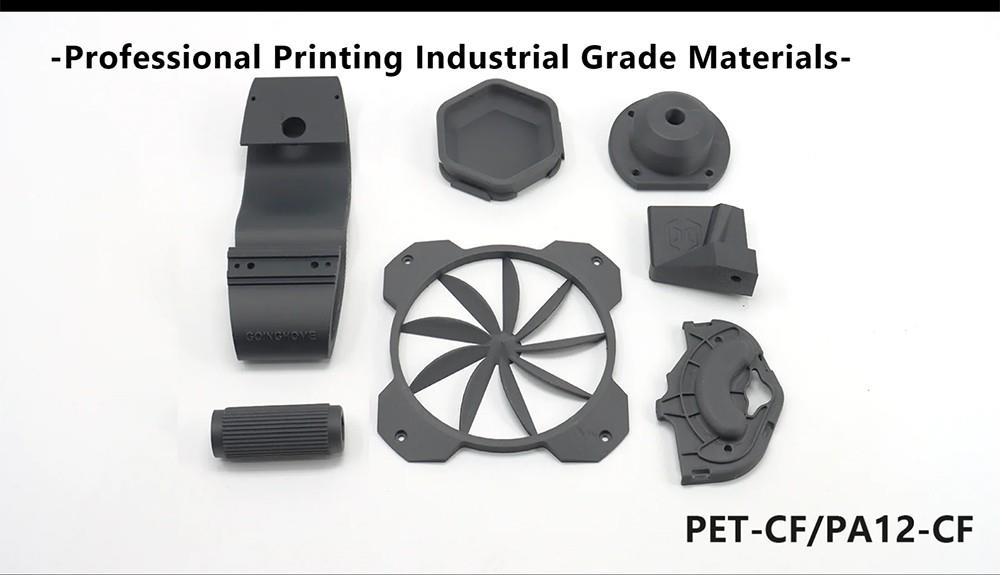

Recommended Filament: PAHT-CF, PET-CF, PA12-CF

Compatible Filament: PLA, ABS, ASA, PETG, TPU, PC, UltraPA, Nylon, etc.

Structure: CoreXY

Z-axis: Double Z axis

X-axis: High-grade hardness steel linear hollow optical axis

Firmware: Klipper

Printing Acceleration: 20000mm/s²

Printing Accuracy: ±0.1 mm

Filament Diameter: 1.75mm

Bed Leveling: Automatic Leveling

Extruder Transmission Ratio: 9.5:1

Hot End: Ceramic Heating Core

Extruder: High-flow Direct Drive Extruder

Nozzle Diameter: 0.4mm (0.2,0.6,0.8mm Optional)

Hot Bed Temperature: ≤120 Celsius

Printing Plate: Double-Sided Flexible Magnetic HF PlateFilament Detection: Yes

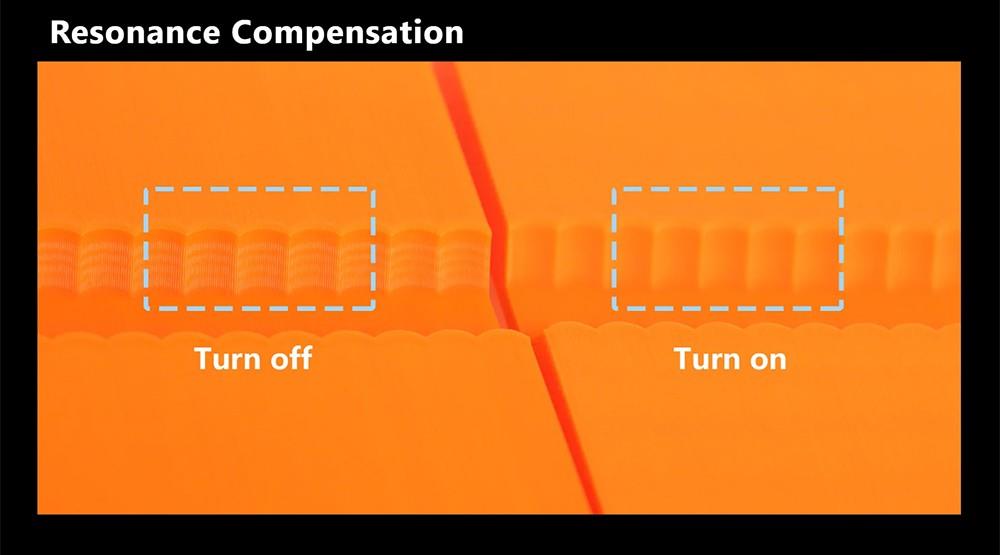

Resonance Compensation: Yes

Pressure Advance: Yes

Voltage: 100-240VAC, 50/60Hz

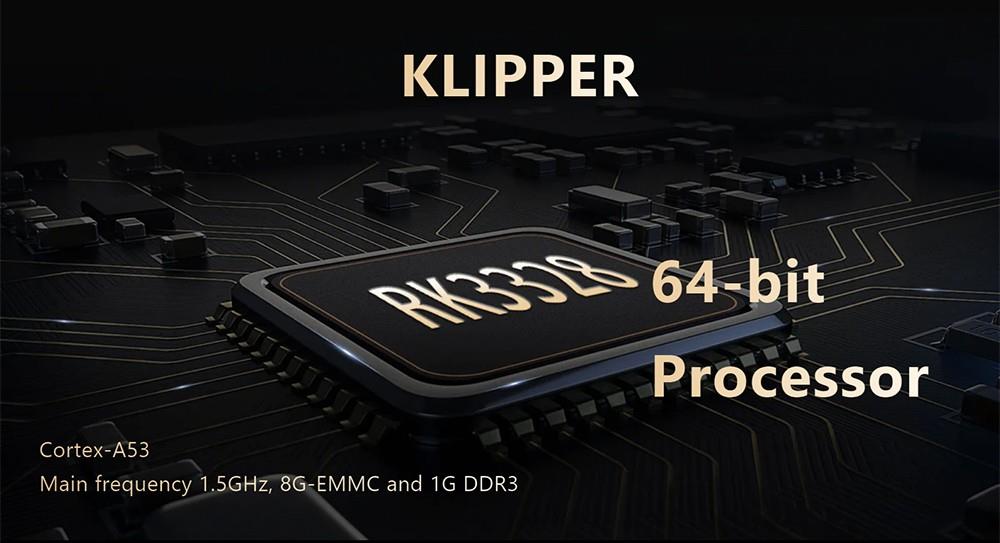

Main Processor: Cortex-A53, 64-bit Processor, 1.5Ghz,8G-EMMC,1G DDR3

Slicer: QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.

Operating System: Windows, MacOS, Linux

Assembled: Assembled and First Print within 10 minutes
Weight & Size

Product Weight: 30.2kg

Package Weight: 35kg

Product Size(L x W x H): 553x553x601mm

Package Size(L x W x H): 650x650x720mm

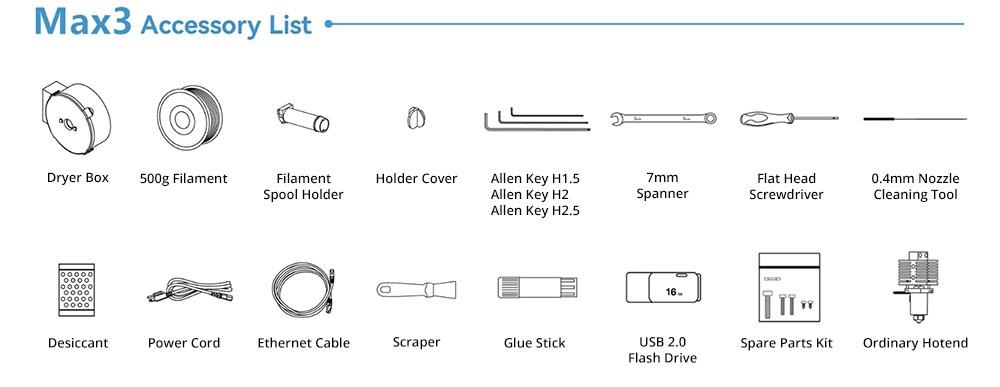

Package Contents

1 x 3D Printer

1 x Dryer Box

1 x 500g Filament

1 x Filament Spool Holder

1 x Holder Cover

1 x Power Cord

3 x Allen Key (H1.5, H2, H2.5)

1 x 7mm Spanner

1 x Flat Head Screwdriver

1 x 0.4mm Nozzle Cleaning Tool

1 x Desiccant

1 x Ethernet Cable

1 x Scraper

1 x Glue Stick

1 x USB 2.0 Flash Drive

1 x Spare Parts Kit

1 x Ordinary Hotend

1 x User Manual
QIDI
1150515UKDF

Specific References

EAN13
5544031268053
